Accuracy of lung structure constructed by three-dimensional image analysis with non-enhanced computed tomography

Introduction

Background

Multi-detector computed tomography (CT) can construct three-dimensional (3D) images, which are useful in various medical fields (1-3). In thoracic surgery, several studies have reported the superiority of video-assisted thoracic surgery (VATS) and robot-assisted thoracoscopic surgery (RATS), which are less invasive compared to thoracotomy, and the number of procedures performed is increasing (4-6). Although these techniques allow for a magnified view, a wide field of view is difficult to obtain, which may lead to anatomical misidentification. Segmentectomy is expected to increase in the future, as its utility has been demonstrated in several large randomized controlled trials (7,8). Segmentectomy requires more detailed anatomic awareness than lobectomy. Fluorescence visualization using indocyanine green is utilized worldwide for improved visualization of the intersegmental plane in segmentectomy (9,10). In this situation, it is important to understand the accurate anatomical features before surgery.

Rationale and knowledge gap

The importance of 3D images that allow detailed anatomical recognition has been reported by several studies (10-17). However, these studies used 3D images based on contrast-enhanced CT. Contrast agents are considered high-risk for patients with renal dysfunction and bronchial asthma (18,19). Further, contrast agent allergy can occur even in healthy individuals (20). If non-enhanced CT could produce clear 3D images, it would allow for safe surgery while reducing the burden on the patient. Moreover, the aging society worldwide has also increased the number of patients with limited renal function capacity.

Objective

The aim of this study was to investigate the accuracy of 3D images of the lungs constructed from non-enhanced CT using the latest image analysis systems. We present this article in accordance with the STROBE reporting checklist (available at https://jtd.amegroups.com/article/view/10.21037/jtd-24-1406/rc).

Methods

Patients

Of the patients who underwent lobectomy or segmentectomy at Nagoya University Hospital, 10 consecutive cases in each lung lobe were collected for a total of 50 cases between March and December 2022. The patients underwent both non-enhanced and contrast-enhanced CTs 2 months before surgery, and all the actual anatomical details were available on video during surgery. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The study was approved by institutional ethics board of Nagoya University Graduate School of Medicine (No. 2020-0525: February 8, 2021) and individual consent for this retrospective analysis was waived due to the retrospective nature.

Database

We used the following clinical and pathological characteristics in our database: age, sex, smoking history, pathological type, surgical approach, surgical procedure, operation time, intraoperative blood loss, 90-day mortality, postoperative complications based on the Clavien-Dindo classification, and description of postoperative adjuvant therapy. Postoperative complications that occurred within 90 days of surgery were recorded using the Clavien-Dindo system (21).

3D image construction

CT imaging was performed with a 64-channel multi-detector CT (Toshiba Medical Systems Corp., Tokyo, Japan) with a 1-mm thickness of the entire lung. All patients underwent non-enhanced CT followed by contrast-enhanced CT in the equilibrium phase after injecting the contrast agent. We used the Synapse Vincent System ver. 6.8 (Fujifilm Corporation, Tokyo, Japan) to obtain 3D images of the pulmonary vessels and the tracheobronchial tree. The system used the novel deep learning algorithm based on anatomical recognition and sequential recognition, not only differences in CT values, and automatically generated 3D images based on both the non-enhanced and contrast-enhanced CT images. The quality of all CT images was good enough to delineate the subsegmental branches. The generated images did not undergo any human modification.

Analysis

First, we compared the non-enhanced CT-based and contrast-enhanced CT-based 3D images to validate their differences. Second, we evaluated accuracy by comparing these images to the actual surgical findings. Two surgeons (O.N. and T.F.C.Y.) interpreted the 3D images of the pulmonary artery (PA), pulmonary vein (PV), and bronchus (Br) branching patterns. Two other surgeons (T.K. and S.N.) evaluated the actual intraoperative video of anatomical findings postoperatively. In comparing non-contrast CT-based and contrast-enhanced CT-based 3D images, we evaluated PA, PV, and Br greater than 2 mm in diameter. Further, in surgical findings, we decided that PA, PV, and Br require evaluation up to the segmental-level. The cases that could not be identified to segmental level, such as Br in lobectomy, were evaluated at the lobar-level. We counted the number of branches that matched PA, PV, and Br.

Results

The patient characteristics are shown in Table S1. The median age was 74 years, and 35 patients (70%) were male. Further, 47 patients (94%) had primary lung cancer, the most frequently performed surgical approach was RATS, and 47 patients (94%) underwent lobectomy. The median operative time was 171 minutes, and the median intraoperative blood loss was 11 mL. No postoperative complications were reported with grade ≥3 and 90-day mortality.

Figure 1 shows the representative images in which 3D images based on non-enhanced CT and those based on contrast-enhanced CT were well matched, whereas Figure 2 shows unmatched representative images. Compared to contrast-enhanced CT, 3D images based on non-enhanced CT were equally distinct, with clearly recognizable structures. Table 1 compares the coincidence and discrepancy rates between non-enhanced and contrast-enhanced CT-based 3D images when divided into the right and left lungs. The coincidence rate in the right lung was 70%, and that in the left lung was 65%, which was almost equal. As shown in Figure 2, all cases of discrepancy were either due to the PA or PV being incorrectly depicted on the other, whereas the Br was consistent in all cases.

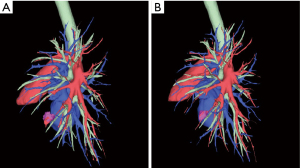

Figure 1 Matched 3D images. (A) 3D image of the right pulmonary vessels and bronchus based on non-enhanced CT. (B) 3D image based on contrast-enhanced CT. (A) and (B) are well matched. 3D, three-dimensional; CT, computed tomography.

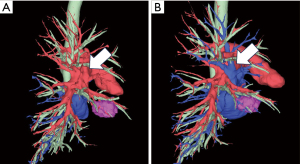

Figure 2 Unmatched 3D images. (A) 3D image of the right pulmonary vessels and bronchus based on non-enhanced CT. (B) 3D image based on contrast-enhanced CT. In a branch of the right upper pulmonary vessel (arrows), (A) and (B) are not matched. 3D, three-dimensional; CT, computed tomography.

Next, we compared the actual surgical findings with the non-enhanced and contrast-enhanced CT-based 3D images to evaluate accuracy. Figure 3A-3C shows the representative images in which 3D findings based on non-enhanced CT and those based on contrast-enhanced CT were both consistent with the intraoperative findings. Conversely, Figure 3D-3F shows the representative images in which 3D findings based on non-enhanced CT and those based on contrast CT did not match the intraoperative findings. Furthermore, Figure 4 shows representative images in which 3D findings based on non-enhanced CT were inconsistent, whereas those based on contrast CT were consistent with the intraoperative findings. The number of coincidence branches between 3D imaging based on non-enhanced CT and surgical findings in each lobe.

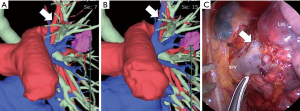

Figure 3 Comparison of 3D images and surgical findings. (A) 3D image of the left pulmonary vessels and bronchus based on non-enhanced CT. In this patient, a left upper lobectomy was performed. (B) 3D image based on enhanced CT. (C) Surgical findings. Both (A) and (B) are consistent with (C). (D) 3D image of the right pulmonary vessels and bronchus based on non-enhanced CT. In this patient, a right upper lobectomy was performed. (E) 3D image based on enhanced CT. (F) Surgical findings. In a branch of the right upper pulmonary vein (arrows), both (D) and (E) are not consistent with (F). LUL, left upper lobe; LLL, left lower lobe; RUL, right upper lobe; SVC, superior vena cava; SPV, superior pulmonary vein; 3D, three-dimensional; CT, computed tomography.

Figure 4 Unmatched 3D images in which only 3D images from non-enhanced CT were inconsistent with surgical findings. (A) 3D image of the left pulmonary vessels and bronchus based on non-enhanced CT. In this patient, a left upper lobectomy was performed. (B) 3D image based on enhanced CT. (C) Surgical findings. In a branch of the left upper pulmonary vein (arrows), (A) is not consistent with (C), even though (B) is consistent with (C). LUL, left upper lobe; SPV, superior pulmonary vein; 3D, three-dimensional; CT, computed tomography.

In each case, we counted the number of PA, PV, and Br that could be confirmed by surgical findings. For example, in one case of right upper lobectomy, if the surgical findings showed the pulmonary trunk, A2b, V1, central vein, and right upper lobe Br, we counted PA: n=2, PV: n=2, Br: n=1. Also, we counted the number of branches that matched the 3D images based on non-enhanced CT and the surgical findings. The number of branches actually present in the surgical findings (total branches) and the number of branches correctly depicted in the non-enhanced CT-based 3D images (coincidence branches) were calculated as the sum of ten cases in each lobe (Table 2). In the right middle, right lower, and left lower lobe, PA, PV, and Br were correctly delineated in all cases. Conversely, in the right upper lobe, the coincidence rate for the PA was 97%, and that for PV was 74%, indicating the incorrect delineation of PV in many cases. In the left upper lobe of the lungs, the coincidence rate for PA was 100%, while that for PV was low at 87%.

Similarly, Table 3 shows the coincidence branches of 3D images based on contrast-enhanced CT in each lobe. In the right middle, right lower, and left lower lobes, the 3D images matched the surgical findings in all cases. In the right upper lobe, the coincidence rate for the PA was 97%, and that for PV was 87%. Also, in the left upper lobe, the coincidence rate for the PA was 100%, and that for PV was 97%.

Table 4 shows the details of cases in which the 3D images did not match the surgical findings. All cases with poor delineation on contrast-enhanced CT were also poorly delineated on non-contrast CT. PA was poorly delineated in only one case, whereas PV was poorly delineated in all cases. The pattern of poor visualization was similar, with PV misidentified as PA.

Discussion

This study showed that 3D images based on non-enhanced CT are accurate in specific lobe. There have been previous reports on the usefulness of 3D images based on non-enhanced CT in a limited number of cases (22,23). However, to our knowledge, this study is the first report to analyze each lung lobe separately and to show that the results are different for each.

In this study, we compared non-enhanced CT-based 3D images with contrast-enhanced CT-based 3D images. Among the cases in which both 3D images were matched, there were cases in which both were incorrectly delineated. Therefore, we compared these 3D images with the actual surgical findings to evaluate accuracy. The coincidence rates between 3D images based on non-enhanced CT and surgical findings in the right middle, right lower, and left lower lobes were high at 100%, while the coincidence rate for pulmonary vessels in the right upper and left upper lobes was low. Because Synapse Vincent uses anatomical recognition and sequential recognition, it is presumed that the pulmonary vessels can be accurately depicted in cases which their running is clearly different. Therefore, in the right middle and bilateral lower lobes of the lungs, PA and PV are nearly orthogonal to each other, which may have contributed to their accurate classification. However, in the bilateral upper lobes, the running of PA and PV are similar, possibly contributing to their misidentification. In a comparison of 3D images based on contrast-enhanced CT and intraoperative findings, the left upper lobe of the lung had a high coincidence rate of 90%, while that of the right upper lobe was 70%. Poor delineation of the right upper lobe of the lung on contrast-enhanced CT was also reported by Hagiwara (12). The right upper lobe of the lung is probably a systemically difficult structure to delineate, even when based on contrast-enhanced CT.

All poor delineation cases in this study were due to the misidentification of PV as PA. In other words, vessels were correctly recognized and depicted as blood vessels even in images based on non-enhanced CT, and the image quality was not inferior to that of contrast-enhanced CT. From the surgeon’s point of view, the misrecognition was evident and easily modifiable. In this software, manual modification is possible; therefore, the 3D imaging based on non-enhanced CT is considered sufficiently available for clinical use, and will become more useful with increased accuracy after eliminating the need for human modification.

The limitations of this study were its retrospective nature, inducing bias, and small sample size. Because this study showed that 3D images based on non-contrast CT might be useful, prospective, larger scale studies are needed for properly evaluating this 3D software.

Conclusions

3D images based on non-contrast CT have the potential to accurately depict lung blood vessels and bronchi. However, further technological advances are needed to depict lung structures correctly in all lung lobes.
