Choosing between percutaneous coronary intervention and coronary artery bypass graft surgery for nondiabetic patients with multivessel disease

Approximately 30–60% of patients with acute coronary syndrome present with multiple significant coronary lesions and patients with multivessel CAD have worse prognosis including significant increase in death or MI when compared with patients with single vessel CAD (1). Similarly, in patients with stable ischemic heart disease, multivessel CAD portends worse prognosis when compared with patients with single vessel CAD (2).

The treatment of multivessel CAD includes contemporaneous medical therapy with or without revascularization (3). While revascularization improves prognosis in patients with acute coronary syndromes (4), the benefit of routine revascularization for reducing myocardial infarction and all-cause mortality in patients with stable CAD remains controversial (5-7). In symptomatic patients, revascularization provides for more rapid relief of angina (8). Coronary artery bypass graft (CABG) surgery, percutaneous coronary intervention (PCI) or hybrid coronary revascularization are options for revascularization in patients with CAD (Table 1). While in the diabetic population CABG has been shown to have superior clinical outcomes compared to PCI in a recent randomized trial (9), the optimal revascularization strategy in nondiabetics remains controversial.

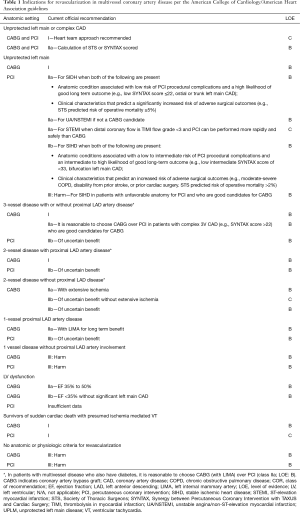

Table 1 Indications for revascularization in multivessel coronary artery disease per the American College of Cardiology/American Heart Association guidelines
Full table

To address this question, Chang et al. (10) performed a patient level pooled analysis from the SYNTAX (Synergy between PCI with Taxus and Cardiac Surgery) (11) and the BEST (Randomized Comparison of Coronary Artery Bypass Surgery and Everolimus-Eluting Stent Implantation in the Treatment of Patients with Multivessel Coronary Artery Disease) trials (12), and evaluated the effects of CABG versus PCI with drug eluting stents (DES) on the long-term mortality in nondiabetics with multivessel disease. The primary end point was death from any cause. The secondary outcomes were a composite of death, myocardial infarction, or stroke; myocardial infarction; stroke; or any repeat revascularization.

The SYNTAX trial was a prospective, multicenter, randomized controlled trial, which evaluated the comparative efficacy of CABG versus PCI with Taxus stent among patients with triple vessel disease and or left main disease (11). The trial had a power of 96% to show non-inferiority between PCI and CABG for the primary end point of MACCE (composite of all-cause death, MI, stroke or repeat revascularization), assuming a 12-month MACCE of 13.2% for CABG and 14% for PCI, with a sample size of 1,800 patients. At 12 months, the achieved event rate for MACCE was significantly lower with CABG (12.4%) when compared with PCI (17.8%) driven by significant reduction in repeat revascularization. These results were sustained out to 5-years (event rates 26.9% vs. 37.3%; P<0.001). However, the trial was not powered for the endpoint of death. There was no difference in the endpoint of death between PCI and CABG at 1 year (event rates 4.4% vs. 3.5%; P=0.37) or at 5-year (event rates 13.9% vs. 11.4%; P=0.10). The strengths of the trial are enrollment of the target sample size, adequate power for MACCE, and high usage of arterial grafts in the CABG group with 97.3% receiving at least one arterial graft and 95.6% receiving an arterial graft to the left anterior descending artery. The limitations are the lower rates of complete revascularization with PCI when compared with CABG (56.7% vs. 63.2%; P=0.005) and use of the Taxus stent, which is considered inferior to current day standards. The rate of repeat revascularization with PCI in the SYNTAX trial was 13.5% at 12 months and 25.9% at 5 years. Moreover, the rate of definite or probable stent thrombosis was 3.3% at 12 months and 5.5% at 5 years. PCI has considerably advanced since the first generation DES era and studies have shown that the newer generation DES reduces restenosis, stent thrombosis, death or MI when compared with older generation DES or BMS (13,14). The applicability of SYNTAX trial to contemporary practice of PCI is therefore debatable.

The BEST trial was subsequently designed to evaluate the comparative efficacy of CABG versus PCI with newer generation DES (everolimus eluting stent) in patients with multivessel disease (12). It was a prospective, open-label, randomized trial evaluating the primary end point of composite of death, myocardial infarction, or target-vessel revascularization (MACCE) at two years. Assuming a 12% incidence of primary endpoint (MACCE) at 2 years with CABG and using a non-inferiority margin of 4%, the trial had 80% power to detect non-inferiority between PCI and CABG with a sample size of 1,776 patients. However due to slow enrollment, the trial was prematurely terminated after only 880 patients. The achieved control event rate was 11% for CABG at 2 years. The results demonstrated no significant difference between PCI and CABG for the primary end point at 2 years (11.0% vs. 7.9%; P=0.32). The authors concluded that PCI with everolimus-eluting stents was non-inferior to CABG. However, at long-term follow-up of 4.6 years, the primary end point occurred significantly more frequently with PCI (15.3% vs. 10.6%; P=0.04), driven by higher rate of target-vessel revascularization in the PCI group (7.1% vs. 3.8%; P=0.03). There was no significant difference between the two groups for death (6.6% vs. 5.0%; P=0.30) or MI (4.8% vs. 2.7%; P=0.10). Strengths of this trial are the use of contemporary DES and high usage of arterial grafts (99.3%) with CABG. However, there are significant limitations of this study. The study enrolled less than 50% of intended target and thus is severely underpowered even for the composite primary outcome, let alone for the individual endpoints of death or for MI. Moreover, there was lower rates of complete revascularization with PCI when compared with CABG (50.9% vs. 71.5%; P<0.001).

Thus the above two studies were not powered for the outcome of death. Can combining the results of the above studies provide adequate power for the outcome of death? The authors in the current study attempted to do just that by a patient level analysis of the SYNTAX and BEST trial with the primary end point being all cause mortality. In this study, among 1,275 patients (638 in CABG arm and 637 in PCI arm) followed up for a median of 61 months, CABG resulted in significantly less number of deaths from any cause compared to PCI (6% vs. 9.3%; HR: 0.65; 95% CI: 0.43 to 0.98; P=0.039), cardiovascular death (HR: 0.41; 95% CI: 0.25 to 0.78; P=0.005), MI (HR: 0.40; 95% CI: 0.24 to 0.65; P<0.001), and repeat revascularizations (HR: 0.55; 95% CI: 0.40 to 0.75; P<0.001). Although CABG had a higher rate of stroke than PCI, the difference was not statistically significant (HR: 1.13; 95% CI: 0.59 to 2.17; P=0.714). When stratified by the SYNTAX score, there was no significant difference in patients with low SYNTAX score (0–22) for all-cause mortality (6% vs. 7.5%; P=0.60). Whereas in patients with intermediate (23–32) to high (≥33) SYNTAX scores mortality was significantly lower in the CABG group (7.1% vs. 11.6%; P=0.02).

Does this study provide ironclad evidence to support CABG instead of PCI for all nondiabetic patients with multivessel disease? Unfortunately the answer is a resounding no. The SYNTAX trial is no longer relevant to contemporary practice as multiple trials and Meta analyses have shown that Taxus stent is inferior to 2^nd generation DES. Although the BEST trial is relevant, the trial was severely underpowered even for the composite endpoint. Moreover, combining BEST and SYNTAX does not add to the 2^nd generation DES group.

In conclusion, while the authors aim to answer an important question, the combination of these two non-ideal datasets (for reasons mentioned above), lends inherent limitations to interpretation of the results. So what evidence do we have while choosing the optimal revascularization strategy for our patients with multivessel CAD? Compared with the first-generation DES used in the SYNTAX study, second-generation DES have thinner struts, thinner and more biocompatible polymer which cause less inflammation and reduce the risk of restenosis and stent thrombosis by promoting faster vessel healing. As such, second generation DES have been shown to reduce the risk of death, MI, and stent thrombosis compared to bare metal and first generation DES (14-17). In this context, a well powered randomized trial comparing the best of CABG (complete revascularization with multi arterial grafts) versus best of PCI (complete functional revascularization with 2^nd generation DES) would ideally provide the relevant answer. In the absence of such a trial, data from non-randomized studies offer important insights-albeit being hypothesis generating only.

In a recent meta-analysis of 68 randomized trials with 24,015 diabetic patients CABG was compared to PCI with first and second generation DES (18). The results found that while first generation DES were associated with significantly increased mortality compared to CABG, second generation DES were not associated with a statistically significant increase in mortality, reflecting a diminishing mortality gap between PCI and CABG with contemporary stents. Moreover, analyses of data from New York State registries comparing PCI (angioplasty and first generation DES) with CABG have demonstrated superior survival with CABG (19-21). However, a propensity matched analysis of 18,446 patients comparing EES (second generation DES) versus CABG for multivessel CAD found similar risk of death among the two groups (3.1% vs. 2.9%; HR: 1.04; 95% CI: 0.93 to 1.17; P=0.50) at 2.9 years (22). Although PCI was associated with a significantly higher risk of MI (1.9% vs. 1.1%; HR: 1.51; 95% CI: 1.29 to 1.77; P<0.001) and repeat revascularization (7.2% vs. 3.1%; HR: 2.35; 95% CI: 2.14 to 2.58; P<0.001), the PCI group had a significantly lower risk of stroke (0.7% vs. 1.0% per year; HR: 0.62; 95% CI: 0.50 to 0.76; P<0.001). Additionally, the short-term outcomes (in hospital or ≤30 days) favored PCI with lower risk of death (0.6% vs. 1.1%; HR: 0.49; 95% CI: 0.35 to 0.69; P<0.001) and stroke (0.2% vs. 1.2%; HR: 0.18; 95% CI: 0.11 to 0.29; P<0.001) (Figure 1). Notably, in patients who underwent complete revascularization with PCI, there was no difference between PCI and CABG for MI. Based on the existing data it appears that with newer generation stents, the difference in mortality between PCI and CABG is perhaps narrowing. It should not be forgotten that with time, the surgical success and technique of CABG has also progressed. Thus, there is a dire need for adequately powered randomized trials comparing second-generation DES with CABG to evaluate the efficacy in the current era. Until then, careful decision should be made with a ‘Heart-team’ approach taking into account the patient characteristics, the anatomy of the lesions, ability to completely revascularize with PCI and patient preference.

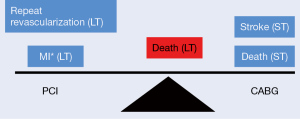

Figure 1 Choosing between percutaneous coronary intervention and coronary artery bypass graft surgery for nondiabetic patients with multivessel disease. ST, short term; LT, long term. *, in those with incomplete revascularization.

Acknowledgements

None.

Footnote

Provenance: This is an invited Editorial commissioned by the Section Editor Feng Zhang (Department of Cardiology, Zhongshan Hospital of Fudan University, Shanghai, China).

Conflicts of Interest: The authors have no conflicts of interest to declare.

Comment on: Ford I, Murray H, McCowan C, et al. Long-Term Safety and Efficacy of Lowering Low-Density Lipoprotein Cholesterol With Statin Therapy: 20-Year Follow-Up of West of Scotland Coronary Prevention Study. Circulation 2016;133:1073-80.
