Massive pulmonary embolism causing large T-wave inversion and QT prolongation

Clinical vignette

A 49-year-old man was admitted to our hospital with a two-week history of exertional dyspnea. He was a daily smoker but otherwise, he had no significant past medical history. Two weeks prior to admission he sprained his ankle which he self-treated it with ice packs. On the day of presentation, he also experienced exertional chest pain which resolved at rest. His physical examination findings were normal except for a fast heart rate. Blood pressure was 131/85 mmHg, heart rate 120/min, O₂ saturation 94% on room air. The electrocardiogram (ECG) on admission is shown in Figure 1A. Laboratory studies revealed an elevated D-dimer of 4.61 µg/mL (normal, <0.5 µg/mL), slightly elevated NT-proBNP-t of 1,829 pg/mL (normal, <170 pg/mL) and significantly elevated hs-troponin T of 312 ng/L (normal, <14 ng/L).

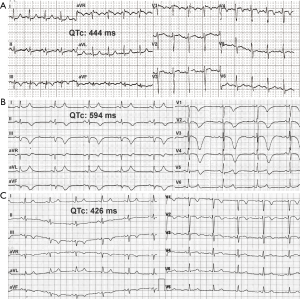

Figure 1 Serial ECG of the patient at presentation (A), next day (B) and three days later (C). ECG, electrocardiogram.

Doppler echocardiogram showed a dilated right ventricle and an estimated pulmonary artery systolic pressure of 68 mmHg (normal, <25 mmHg). Doppler ultrasound of the lower extremities revealed a left popliteal vein thrombus. CT pulmonary angiography showed extensive bilateral lower lobe pulmonary emboli. Since the patient remained hemodynamically stable, he did not meet the criteria for thrombolysis and treatment with low molecular weight heparin was initiated. The day after presentation the ECG showed dramatic new changes while there was no significant change in the patient’s clinical condition (Figure 1B).

Coronary angiography showed clear coronary arteries, and his echocardiogram remained unchanged. The large T-wave inversion and QT prolongation noted in the second ECG gradually resolved in three days (Figure 1C).

A Viskin test was performed to exclude silent long QT syndrome, and it was normal. Repeat echocardiogram prior to leaving the hospital showed improving right ventricular dilation and a slightly lower pulmonary artery systolic pressure of 46 mmHg. The NT-proBNP also decreased to 341 pg/mL.

Description of the ECGs

The ECG on admission (Figure 1A) shows sinus tachycardia with an S1-Q3-T3 pattern, incomplete right bundle branch block and T wave inversion in V4. These are classic signs indicating pulmonary embolism. ECG on the following day showed significant QT/QTc prolongation and extensive T wave inversion (Figure 1B) similar to what has been described as global T wave inversion. However, in our case and in previously published cases on acquired long QT syndrome (LQTS) following PE, there were positive T waves in leads I and aVL (1). Despite the ECG differences between acquired LQTS and classic global T wave inversion, the pathomechanism behind them is most probably similar and is related to catecholamine surge, as was hypothesized by Walder and Spodick (2). The exact cause of the prolonged QT and T wave inversion, however, is uncertain and it is also unclear why they only present in select patients.

Recent studies did not find a direct link between QT prolongation and pulmonary embolism outcome (3), however the prolonged QTc group demonstrated significantly increased right ventricular dilatation and systolic dysfunction/stunning (3). Our case also supports this observation.

We entertained the possibility of underlying silent LQTS as a reason for the remarkable QT/QTc prolongation, however the Viskin test—after the resolution of the ECG changes (Figure 1C)—did not support this hypothesis. The kinetics of QT prolongation was similar to the QT prolongation usually seen in stress related cardiomyopathy, but in our case no left ventricular wall motion abnormality was noted. The QT prolongation appeared to be benign as it did not lead to malignant arrhythmias such as torsade de pointes ventricular tachycardia.

Points to ponder

Biomarkers are not always helpful in the differential diagnosis of dyspnea and chest pain.

Our case of massive pulmonary embolism also highlights the usefulness of the ECG as a cheap and noninvasive bedside method which can help avoid diagnostic errors and incorrect interpretations of elevated troponin levels.

Massive pulmonary embolism can cause significant QT prolongation and T-wave inversion. However, in contrast to global T wave inversion, the T wave remains positive not only in aVR, but also in the high lateral leads I and aVL.

This phenomenon is transient and appears to have no independent prognostic significance. Ongoing research and a recent meta-analysis, however, suggest that the ECG in general can be a valuable tool in the prognostication of pulmonary embolism (4) and in identifying a subgroup of patients who are at a high risk of cardiogenic shock (5).
