Coated expandable metal stents are effective irrespective of airway pathology
Introduction
Endoscopic management of benign and malignant tracheobronchial disorders often requires the insertion of an airway stent. Several types of positionable stents are available (1). Silicone polymer stents (SPS) are widely used, less expensive, and easier to use and manage (2-4). However, SPS have structural limitations: poor adaptability to irregularly sized stenosis, imperfect adherence to airway mucosa, stent migration in patients with subglottic stenosis, in-stent granulation tissue formation, and secretion retention (5).
In 1999, Bollinger described a hypothetical future stent with metallic components and a synthetic coating of silicone or polyurethane as the “ideal stent” (5). The latest generation of self-expanding metal stents (SEMS) may meet this description. A third-generation coated SEMS such as the SILMET® (TRACHEOBRONXANE SILMET®, Novatech SA, La Ciotat, France) has a Nytinol (an alloy of nickel and titanium) structure coated with a thin synthetic layer of polyester material which provides resistance and minimal adhesion to the mucous membrane (6). Its self-expanding ability creates a shape-memory effect, as it undergoes temperature-induced deformation and recovery of its original shape under normal human body temperature conditions (7). The polyester stent coating minimizes the risk of tissue ingrowth, which can occur in uncoated stents, and makes stent removal easier (7). Nytinol is biocompatible and highly resistant to corrosion; thus minimizing the risk of trauma. The mesh structure of Nytinol provides a high resistance against compression and ensures the maintenance of structure and function, even in the unlikely event of a broken wire (8). Compared to the early SPS, SEMS have thinner walls that allow more airflow and are designed to limit the complications that occur from in-stent granulomas (9). The aim of the study was to evaluate the outcomes of patients with tracheobronchial diseases treated by SEMS in order to examine the suitability of SEMS independent from the airway disorder classification.
Methods
Patients and surgery
From January 2009 to January 2016, n=68 patients with symptomatic benign or neoplastic tracheobronchial disorders underwent rigid bronchoscopy, endoscopic treatment, and airway stenting with coated SEMS (TRACHEOBRONXANE SILMET®, Novatech SA, La Ciotat, France). For all patients enrolled in this retrospective study, surgical resection/reconstruction of the airway was considered not technically feasible or was contraindicated due to medical comorbidities. The Hospital Ethics Committee provided approval for the study (10830/2017) and an informed preoperative consent was obtained from all patients. Preoperative examination of all patients included clinical history, fiberoptic bronchoscopy, and high resolution CT scanning. Patients were divided into two groups: patients who underwent fully covered SEMS stenting either for a benign/malignant tracheal or bronchial stenosis (TBS group, n=56) or for a postoperative (post pneumonectomy, lobectomy, or sleeve lobectomy) bronchopleural fistula (POBPF group, n=12).
Freitag’s classification (10) was used to describe and classify the type of stenosis in the TBS group. A numeric code was assigned to the specific degree of stenosis: from G1 (<25% of a cross-sectional area of the airway obstruction) to G5 (complete airway obstruction). The Hugh-Jones test (11) was used to evaluate respiratory function pre- and post-stent implantation. All incidences of POBPF occurred between the 4th and 14th day after surgery. Fistula diameter was ≥5 mm in all patients (mean 10±2.4 mm).
All stent implantations were performed via rigid bronchoscopy with Dumon’s rigid bronchoscope (Efer Medical, Cedex, France) in deep sedation with short-acting narcotics and benzodiazepines, independently breathing during all procedures. Flexible bronchoscopy was performed in all patients at 10 days and 1 month, 3, and 6 months postoperatively. Subsequent bronchoscopic examinations were performed on a case by case basis. Stent position, secretion plugs, granulation tissue formation at stent margins, stent fracture, and capacity to adhere to the airway mucosa were evaluated. A numeric scoring system to evaluate the secretion plugs was introduced for the first time, with a numeric value assigned to each patient depending on the severity of secretion retention: 0 (no secretions), 1 (moderate secretions easily removable with flexible bronchoscopy), 2 (severe secretions not removable with flexible bronchoscopy, necessitating stent removal). To assess the capacity of the SEMS to adhere to the airway mucosa and to adjust to irregularly sized stenosis, stent migration was evaluated for both groups. Air leak occurrence after stent placement was evaluated and scored for the POBPF group: 0 (no air leaks), 1 (moderate air leaks), 2 (severe air leaks). The secretion score was assigned at the 1 month evaluation, while air leak occurrence was evaluated immediately after stent positioning via bronchoscopy and the chest tube.
Tracheobronchial stenosis (TBS) group
In all TBS patients, airway patency was improved by mechanical dilatation first and/or application of neodymium-doped yttrium aluminum perovskite (ND:YAP) laser (Lokki Lis Laser, Bryan Corporation, Woburn, MA). In cases of restenosis from a benign obstruction, patients were treated with SEMS stenting only after a previous mechanical dilatation and laser treatment.
Patients with malignant stenosis were treated first by dilatation and then by airway stabilization with SEMS. Stent length was chosen in relation to the stenosis type (structural, functional, mixed) and shape (1). The stent length for structural stenosis was based on a 5-mm free margin upstream and downstream from the stenosis. For mixed stenosis, stents of the same or longer length were used for stabilization of the malacic section.
For stenosis involving the distal trachea left or right lung ventilation was guaranteed by the removal of 1 cm2 of the polyester coating of the stent by ND:YAP laser. The absence of a coating layer in the terminal section of the stent (20 mm) allowed the right upper lobe bronchus to ventilate (Figure 1).
![Click on image to zoom](http://cdn.amegroups.cn/journals/pbpc/files/journals/2/articles/17071/public/17071-PB3-R1.png/w300)
Postoperative bronchopleural fistula (POBPF) group
The type of stent used to exclude a POBPF from the airflow was conical and fully coated, with a proximal diameter (tracheal) of 22 mm, a distal diameter (bronchial) of 16 mm, and a length of 50 mm in all patients. Seven patients presented with POBPF occurring after right pneumonectomy (n=6) and left pneumonectomy (n=1). Two patients were treated for anastomotic dehiscence, one of which occurred after right tracheal sleeve pneumonectomy and one which occurred after left upper sleeve lobectomy. Two patients experienced a complete dehiscence of the bronchial stump after right upper lobectomy. One patient had a large lesion of the membranous pars of the bronchus intermedius after right bilobectomy (lower and medium lobectomy) (Figure 2).
![Click on image to zoom](http://cdn.amegroups.cn/journals/pbpc/files/journals/2/articles/17071/public/17071-PB4-R1.png/w300)
Statistical analysis
For the analysis of quantitative variables (normality of distribution verified by the Kolmogorov-Smirnov test), an unpaired t-test was used. Fisher’s t-test was used to compare qualitative variables. The Mann-Whitney U test was performed to compare Hugh-Jones scale scores for the two groups at 1 and 3 months, after controlling for preoperative variables. A logistic regression analysis was performed to evaluate potential risk or protective factors for stent complication occurrences, including stent migration, stent fracture, granulation tissue formation, and severe secretions not removable with flexible bronchoscopy (Secretion Scale =2). A significance level (alpha) of 0.05 was fixed.
Results

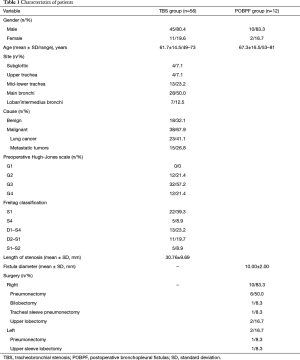

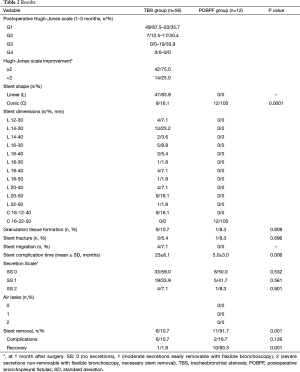

Characteristics of patients are shown in Table 1. Seventy-four self-expanding, coated, metallic SILMET® stents were successfully placed in 68 patients. Post-operative results are shown in Table 2. The mean patient age was 62.4±19.5 years (range, 49–81 years). The cause of tracheobronchial obstruction was benign in 18 patients (32.1%) [post-tracheostomy, 22.2% (n=4); post-intubation, 27.8% (n=5); post bronchial reconstruction, 16.7% (n=3); post tuberculosis granulomas, 33.3% (n=6)] and malignant in 38 patients (67.9%) [non-small cell lung cancer, 41.1% (n=23); metastatic or locally advanced tumors from other organs, 26.8% (n=15): esophagus, 5.4% (n=3); thyroid, 7.1% (n=4); metastatic colorectal, 8.9% (n=5), bladder, 1.8% (n=1), and kidney cancer, 3.6% (n=2)]. Twelve patients were affected by POBPF [post-pneumonectomy, 58.3% (n=7); post right tracheal sleeve pneumonectomy, 8.3% (n=1); post left upper sleeve lobectomy fistula, 8.3% (n=1); post-lobectomy, 16.7% (n=2); post-bilobectomy, 8.3% (n=1)].
![Click on image to zoom Table 1](http://cdn.amegroups.cn/journals/pbpc/files/journals/2/articles/17071/public/17071-PB8-R1.png/w300)
Full table
![Click on image to zoom Table 2](http://cdn.amegroups.cn/journals/pbpc/files/journals/2/articles/17071/public/17071-PB9-R1.png/w300)
Full table
The length of tracheal stenosis was 20 to 30 mm in 8 patients (38.1%), 30 to 40 mm in 11 patients (52.4%), and 40 to 50 mm in 2 patients (9.5%). The length of bronchial stenosis was 20 to 30 mm in 25 patients (71.4%) and 30 to 40 mm in 10 patients (28.6%) (Figure 3).
![Click on image to zoom](http://cdn.amegroups.cn/journals/pbpc/files/journals/2/articles/17071/public/17071-PB5-R1.png/w300)

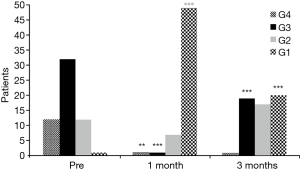

No perioperative mortality was recorded. In all TBS group patients, a significant improvement in Hugh-Jones score was recorded at 1 month after stent implantation (Figure 4): all TBS patients had a Hugh-Jones classification score improvement ≥1 grade and 42 patients (75%) had an improvement ≥2 grades (P=0.001) and only 14 patients (25%) had an improvement of <2 grades at 1 month after stenting. However, a downgrading of the Hugh-Jones score was recorded at 3 months after stenting: 10 patients (17.9%) decreased from grade 1 to grade 2 (P=0.07) and 19 patients (33.9%) decreased from grade 1 to grade 3 (P=0.001) .
![Click on image to zoom](http://cdn.amegroups.cn/journals/pbpc/files/journals/2/articles/17071/public/17071-PB6-R1.png/w300)
Spontaneous stent migration occurred in 4 TBS group patients: 3 patients (5.4%) with a tracheal stent on postoperative days (POD) 20, 40, and 55; and 1 patient (1.8%) with a bronchial stent on POD 28. Only 3 patients (5.4%) needed stent replacement with a larger SEMS. In 1 patient (1.8%), the stent was not replaced because the stenosis had not recurred.
Six TBS group patients (10.7%) and 1 POBPF patient (8.3%) experienced granulation tissue formation (P=0.809). None of the patients required stent removal or replacement. However, in 1 patient of TBS group (1.8%) with benign post-intubation stenosis of the distal section of the trachea, granulation tissue was found at the proximal edge of the stent. In that patient, two weeks after the first stenting, a telescope shaped SPS was placed inside the SEMS to cover the granulation tissue at the proximal edge of the stent.
Four (7.1%) TBS group patients needed stent removal and replacement due to stent fracture/migration or because of a Secretion Scale =2 (SS2): 1 patient had a SS2 and a stent fracture; 1 patient had a SS2; 1 patient had a SS2, a stent fracture, and later stent migration. In 1 patient who was treated for main left bronchus stenosis, removal of the stent was required after 4 weeks due to in-stent growth of a malignancy that displaced the stent by changing its structure and fracturing it. In that patient, a second laser-mechanical dilatation and SPS stenting was performed. In 1 patient, stent replacement was unnecessary after migration of the stent due to the patient’s recovery from the stenosis. In all but 6 TBS group patients (10.7%), the stent could not be removed because of stenosis persistence. The permanent time of stent was 42±7 months in TBS group.
In almost all POBF patients (91.7%, n=11) the stent was successfully removed and not replaced due to recovery from the fistula. In 10 patients (83.3%), the SEMS was removed 4 months after stenting following negative bronchoscopic examination, a CT scan showing a resolution of the fistula, and negative inflammation blood tests (Figure 5). In 1 patient (8.3%), the SEMS was removed because of a SS2.
![Click on image to zoom](http://cdn.amegroups.cn/journals/pbpc/files/journals/2/articles/17071/public/17071-PB7-R1.png/w300)
In 12 POBF patients (100%), immediate resolution of the air leaks was obtained. Permanent closure of bronchial dehiscence without recurrence was achieved in all the patients.
All patients from both groups underwent endoscopic evaluation at one month after stent placement to determine the Secretion Scale. No statistically significant differences were shown between the groups for SS0, SS1, and SS2 (P=0.532, P=0.561, and P=0.901, respectively).
Mean time for stent complications was 23±6.1 months in the TBS group and 5.0±3.0 months in the POBPF group with a statistically significant difference (P=0.006).

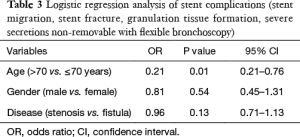

However, logistic regression analysis showed that stent complication occurrences, including stent migration, stent fracture, granulation tissue formation, and severe secretions not removable with flexible bronchoscopy (SS2), were independent from the type of airway disorder [OR =0.96, P=0.13, 95% confidence interval (CI): 0.71–1.13] and patient gender (OR =0.81, P=0.54, 95% CI: 0.45–1.31); but did seem to be influenced by age >70 years (OR =0.21, P=0.01, 95% CI: 0.21–0.76) (Table 3).
![Click on image to zoom Table 3](http://cdn.amegroups.cn/journals/pbpc/files/journals/2/articles/17071/public/17071-PB10-R1.png/w300)
Full table
Discussion
Inoperable tracheobronchial disorders caused by benign/malignant stenosis or complications occurring after major lung resection, in particular POBPF, represent a significant clinical problem (12,13). Surgical resection represents the gold standard for benign tracheal strictures (14). SPS have been used extensively for their ability to be easily removed and repositioned. However, a major disadvantage of SPS is secretion retention in the lumen caused by interference on the physiological mucociliary function of the tracheobronchial epithelium that was interrupted by the stent (15). In addition, SPS are poorly tolerated at the subglottis level and are likely to migrate when used to treat complex tracheal strictures (15). Self-expandable stents were introduced in the 1980s to solve these problems. Although they can be easily inserted via flexible bronchoscopy, tumor or granulation tissue ingrowth around the stent and epithelialization into the airway wall make their removal challenging (16). In 2004, Wood discussed eight fundamental points that a tracheobronchial stent should have. In particular, he stressed the importance of ease of use and the ability to conform to airway contours to guarantee good airway clearance (17).
Several structural limitations due to the use of SPS construction were experienced: poor adaptability to irregularly sized stenosis, insufficient adherence to the airway mucosa, high percentage of stent migration in patients with subglottic stenosis, in-stent granulation tissue formation, and secretion retention. Moreover, many patients underwent stent repositioning for severe secretion retention due to the inability to clear the stent with flexible bronchoscopy. A high incidence of stent migration in cases of subglottic stenosis, irregular stenosis, and complex stenosis (D1-S4) occurred.
In the present study, SEMS exhibited a high tolerance level when in contact with bronchial mucosa in a majority of the patients (92.6%). Improvement of symptoms was obtained in 100% of treated patients. Hugh-Jones scores improved in all TBS group patients at 1 month after stenting. However, as shown in Figure 4, 51.8% of TBS group patients experienced a worsening of the Hugh-Jones score at 3 months after stenting. This may be due to a patient perception of a lack of further improvement, based on reports from the majority of patients. In-stent granuloma formation was relatively infrequent (10.3%). A major SEMS disadvantage is stent collapse due to Nytinol structural alteration. Stent fracture or stent migration occurred in only 5.9% of all patients in the present study.
In the present study (68 cases), SEMS use produced excellent results in the treatment of stenosis of the upper third of the trachea after tracheotomy. The SILMET® stent adhered to the tracheal wall well enough to reduce the risk of migration significantly, a frequent phenomenon in the treatment of subglottic stenosis with polymeric implants. In addition, the availability of different stent sizes made them extremely versatile in comparison with Dumon stents, particularly in irregularly sized stenosis.
For treatment of tracheobronchial stenosis, it is essential to choose the correct stent length to avoid stent migration and consequent obstruction of the distal airway ventilation. In addition, a stent that is too long can damage normal distal airway mucosa. Based on our experience, a good selection criteria is to choose a stent length at least 1 cm longer than the stenosis length (18). In the present study, only 7.1% of all patients experienced stent migration and 10.7% of all patients developed granulation tissue formation. In the TBS group, the stent was removed only in the event of stent fracture, stent migration, or the presence of severe secretions not removable with flexible bronchoscopy (SS2). The stent was removed in only 1 patient due to recovery from the stenosis. In all the other patients, stent removal was not possible for malignant or benign stenosis. This results can be explained considering the significant number of patients affected by malignant disease in our TBS population, which rarely achieve a successful decannulation. Terra and colleague reported in an exclusive benign tracheal stenosis population, an estimate successful decannulation rate of 27.5% (19). In our center the stent usually remain in place at list 36 months. In this series the permanent time of stent was 42±7 months in TBS group. In the POBPF group, almost all SEMS (91.7%) were removed after fistula resolution.
POBPF is the most serious complication experienced by the thoracic surgeon (13). Differing local treatments and stenting were proposed for rapid treatment of this emergent complication. As previously reported by Andreetti et al. (20), the positioning of SEMS in patients with POBPF often requires the use of a laser to partially ablate the stent polyester cover to allow upper lobe ventilation. The procedure did not damage the Nytinol support and left it intact without decreasing stent strength.
For the treatment of POBPF in the present study, a standard size, conical, coated, self-expandable SILMET® stent (proximal diameter =22 mm, distal diameter =16 mm, and length =50 mm) was generally used. It provided the highest level of adaptability in all types of fistula and has been described as the “life-saving stent” (20). The use of a standard size stent allowed quick treatment of the complication, without the wait of at least 3 weeks (estimated time by the manufacturer) to build a custom made stent. For this reason a “life-saving stent” should always be available in a high volume Thoracic Surgery Department.
Importantly, the versatility of SEMS is demonstrated in the present study. Stent complication occurrence, including stent migration, stent fracture, granulation tissue formation, and severe secretions not removable with flexible bronchoscopy (SS2), was independent from the type of airway disorder (OR =0.96, P=0.13, 95% CI =0.71–1.13), based on our logistic regression analysis.
Conversely, SEMS, compared with the SPS, presented some limitations, such as a higher cost and the inability to reload the stent in the delivery catheter after an incorrect implantation. The stent position can be adjusted only by moving it upward or downward with the use of a clamp.
In conclusion, a coated SEMS implant is an effective and versatile treatment for patients affected by irregularly sized TBS and POBPF. Its versatility is independent from the airway disorder.
Acknowledgements
The authors acknowledge Dr. Marta Silvi, Data Manager, Division of Thoracic Surgery, Sant’Andrea Hospital, Faculty of Medicine and Psychology, University of Rome “Sapienza”, and Matteo Sala for Figures editing.
Footnote
Conflicts of Interest: The authors have no conflicts of interest to declare.
Ethical Statement: The Hospital Ethics Committee provided approval for the study (10830/2017) and an informed preoperative consent was obtained from all patients.
