Reference values for spirometry in Chinese aged 4–80 years
Introduction
Spirometry has been widely used for diagnosing respiratory diseases, quantifying disease severity, and assessing disease prognosis (1,2). Accurate interpretation of spirometry requires appropriate reference values derived from its own ancestry population (3), including lower limits of normal (LLNs), which could be helpful for assessment of abnormal pulmonary function in patients with pulmonary diseases.
There are over 40 million overseas Chinese (4) and 1.3 billion mainland Chinese (5) in the world (about 22% of the global population), indicating the huge medical demand (6). Embarrassingly, standardized nationwide spirometric reference values for Chinese were unavailable.
In 2012, Global Lung Function Initiative (3) recommended multi-ethnic reference values for African-Americans, Southeast Asians (SEA-GLI2012) and Northeast Asians (NEA-GLI2012), which were largely established with Caucasian data and adjusted with fixed ethnic conversion factors in the whole age range. In addition, other Caucasian reference values adjusted with fixed ethnic conversion factors were also applied in China (7,8), such as European Committee of Steel and Coal equations adjusted for Chinese with the suggestion of Zheng et al. (Chinese-ECSC1993) (9,10), and the third national health and nutrition examination surveys equations adjusted with 0.88 times for Asian-American (Asian-NHANESIII 0.88) (11,12). Given the dynamic changes of gene, economic, environment, nutrition and et al., it remains unknown whether those fixed ethnic conversion factors reliably reflect the difference of spirometry between Caucasians and Chinese.
Although several spirometric reference values for Chinese have been published (13-22), the major disadvantages in these studies limited the nationwide use, including small samples, limited age ranges, small local regions, as well as different study protocols and quality control. Without LLNs for nationwide Chinese, a fixed 0.7 of forced expiratory volume in 1 second to forced vital capacity (FEV1/FVC) instead of LLNs was frequently applied for the diagnosis of “airflow limitation” in previous studies (7,23,24), leading possible underdiagnosis in younger subjects and over diagnosis in elderly. Moreover, In the nationwide questionnaire surveys on clinical application of pulmonary function testing conducted in 2002 (25) and 2012 (unpublished data), the majority (78.6% and 77.8%, respectively) of hospitals in China were unaware of where the reference values were derived from and used the default reference values in spirometers only. Even in the same region, different hospitals used various references. These could lead to improper assessment of pulmonary function and treatment effects.
Consequently, it is essential to establish ethnic reference values for spirometry in Chinese with a large sample size and wide age range, and validate whether fixed ethnic conversion factors reflect the differences between Caucasian and Chinese in the whole age range.
Methods
Study design
This cross-sectional study was conducted with the uniform study protocol, between January 2007 and December 2010, at 24 collaborative centers across China. Approval was obtained from local ethics committee. Written informed consent was obtained from participants or their guardians (when participants were under 18 years of age). All centers selected are in the region that lived with a big amount of population, among them, majority are Han people, and minority groups (non-Han) were excluded in the present study.
Subjects
Adult participants were recruited in health screening department of each center, while children participants were recruited in kindergartens, elementary and middle schools that closed to centers, in which all children in the same class were selected. The occupation of participants included preschool children, students, teachers, farmers, workers, office staffs, retirees, etc. The key inclusion criteria were: (I) life-long non-smokers; (II) no symptoms and history of chronic cardiopulmonary diseases (chronic bronchitis, asthma, lung cancer, pulmonary fibrosis, pulmonary tuberculosis, chronic heart diseases, etc.); (III) no abnormal findings on physical examination; (IV) written informed consent was obtained. The key exclusion criteria were: (I) upper or lower respiratory infection within 4 weeks; (II) long-term exposure to harmful gas or particles; (III) using β-blocker for treatment; (IV) pregnant women, epileptic; (V) other diseases or surgeries potentially affecting lung function. Health questionnaires about medical history and personal characters were provided to the participants and children’s parents prior to spirometry. Age was calculated with the date of examination and the definite birthday. Standing height was recorded to the nearest 0.5 cm without shoes. Weight was measured to the nearest 0.5 kg with light-weight clothing.
Spirometry
Spirometers all met the instrument standardization of American Thoracic Society and European Respiratory Society (ATS-ERS) (26). Technicians were full-time staffs for spirometry in centers, and well-trained to follow the procedures and criteria recommended by ATS-ERS statements (26,27). Prior to spirometry, calibration check was undertaken daily with a 3-L syringe, and confirming that the variations were within limits, e.g., ±3% (90 mL). With correction of sitting postures, subjects attached the nose clip or manual occlusion of the nares, placed mouthpiece in the mouth and closed their lips around the mouthpiece. Then they were encouraged to inhale completely and rapidly with a pause of <1 second at total lung capacity, and exhaled maximally until no more air could be expelled while maintaining an upright posture. Acceptable maneuvers included: (I) free from artefacts (cough during the first second of exhalation; glottis closure that influenced on the measurement; early termination or cut-off; effort that was not maximal; gas leakage or obstructed mouthpiece); (II) good starts (extrapolated volume less than 5% of FVC or 0.15 L, whichever is greater); (III) satisfactory exhalation (a plateau in the volume-time curve or forced expiratory time of ≥3 seconds in children aged <10 years, ≥6 seconds in subjects aged >10 years or if the subject cannot or should not continue to exhale). Manoeuvers were repeated for 3 to 8 times in each subject until three acceptable and repeatable spirograms were obtained. For both FVC and FEV1, the acceptable difference was within 150 mL between the largest and second largest values. The largest FVC, FEV1 and peak expiratory flow (PEF) were selected within the best three maneuvers, while maximal midexpiratory flow (MMEF) were taken from the maneuver with the largest sum of FVC and FEV1. Spirometry was performed between 8:00 am and 12:00 am.
Data collection
Health questionnaires and original spirometry reports of participants after preliminary screening and physical examination were collected in each center and sent to the First Affiliated Hospital of Guangzhou Medical University for centering quality control, which was conducted by two well-trained physicians in accordance with ATS-ERS criteria (26,27). If they had inconsistent conclusions with the same report, consultancy with a third senior physician would make the final decision. All data were double input and checked with Epidata 3.0 (Odense, Denmark). Data that yielded z-scores 5.0 were identified as outliers and excluded (3).
Statistical analysis
Spirometric reference equations for the whole subjects were derived using Lambda-Mu-Sigma (LMS) method (28,29) using Generalized Additive Models of Location Scale package (GAMLSS version 4.3-1) in the statistical software R (version 3.1.2; http://www.r-project.org). The spirometry data were modeled with age and standing height as explanatory variables. Using the Box-Cox-Cole-Green distribution, the best model was estimated by exploring whether log transformations of dependent and independent variables were required. Considering of unnecessary over-fitting, the optimal degrees of freedom for the cubic spline curve were chosen by selecting the model with the smallest Schwarz Bayesian Criterion. In addition, the goodness of fit was judged from inspection of normal Q-Q plots, worm plots, the distribution of residuals as a function of age and predicted value, and from density plots of residuals. In keeping with Cole et al., log transformation of all the indices provided the best fit to the data. Thus, the reference equations were established as a function of age and height in males and females, including skewness (location, L), mean (M) and coefficient of variation (scatter, S). M indicates the predicted value as follows: M = exp[a + b × ln (height in cm) + c × ln(age in year) + M-spline], where a, b, and c are coefficients, and M-spline is an age-specific contribution from the spline function. Likewise, LLN was calculated as follows: LLN (5th percentage) = exp[ln (M) + ln(1 − 1.645 × L × S)/L]. Z-scores were calculated as (observed-predicted)/SD, where SD was calculated as (predicted-LLN)/1.645.
Similarly, a best fit of standing height for age was derived from the data of males and females with GAMLSS. In the validation analysis, the predicted values of this study and NEA-GLI2012, SEA-GLI2012, Chinese-ECSC1993, and Asian-NHANESIII 0.88 were compared with the measured data of spirometry; if the average z-score that yielded ±0.4 (30) or the percentage difference that yielded ±5.0%, the equations would not be considered as appropriate for Chinese. In addition, the new reference equations of this study were compared with other previous published reference equations derived from Chinese using assumptive anthropometric characters.
Results
Subjects

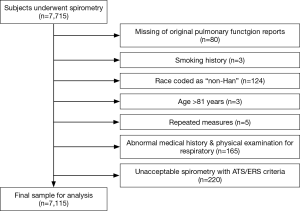

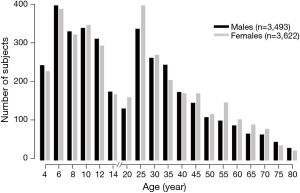

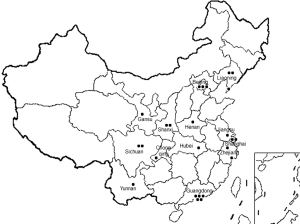

Figure 1 illustrates 24 collaborative centers in China. After preliminary screening of questionnaire and physical examination in each center, spirometry was performed with a total of 7,715 individuals initially. The numbers of exclusion and reasons are listed in Figure 2. No data yielded a z-score of 5.0. Quality assurance data of 7,115 individuals (50.9% females; 4 to 80 years old and 95.0 to 190.0 cm in height) was collected. The general geographic characterization is shown in Table 1. The distributions of age for males and females are demonstrated in Figure 3, where the intervals of age are 2 years in children (until 14 years of age in China).
Full table
Reference equations established for spirometry

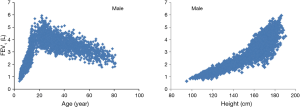

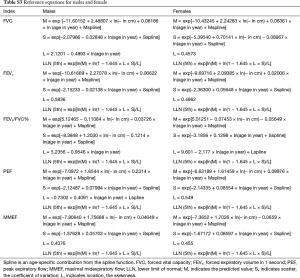

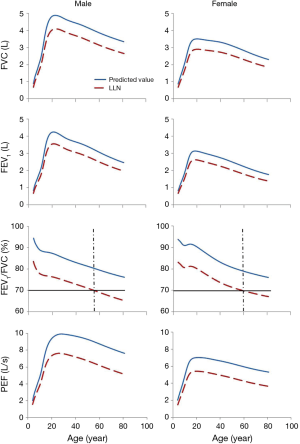

The reference equations and look-up tables for FVC, FEV1, FEV1/FVC, PEF and MMEF are presented as files in supplementary material (Tables S1-S3). There were nearly linear relationships between age, height and spirometric indices in adult data and children data taken separately, such as the measured FEV1 in Figure 4. The best fitting models required log transformations of spirometric indices, height and age in the whole data. The age-specific predicted values and LLNs are shown in Figure 5. The LLNs of FEV1/FVC were less than 0.70 in males above 56 years of age and in females above 60 years of age.
Full table
Full table
Full table
Validation of the popular Caucasian equations adjusted with fixed ethnic conversion factors

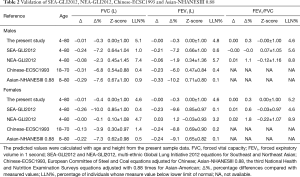

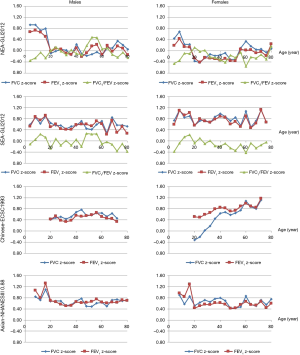

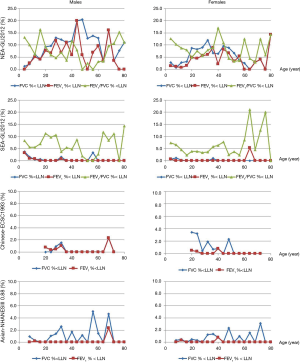

In Table 2, SEA-GLI2012 underestimated the FVC and FEV1 of the present study with the mean z-score ranged from 0.64 to 0.85 (−10.0% to −7.2%), while those measured values below LLNs (%< LLN) were 0.1% to 1.0%. Although the mean percentage differences of FVC and FEV1 between NEA-GLI2012 and the present study were −2.4% to 1.2%, the z-scores against age were beyond +0.4 in children, especially in male children (Figure 6). Across the whole age in Figure 7, SEA-GLI2012 and NEA-GLI2012 overestimated the % < LLN of FEV1/FVC at most age range. In addition, Chinese-ECSC1993 and Asian-NHANESIII 0.88 also underestimated FVC and FEV1 of Chinese (−8.8% to −3.9%, and −10.2% to −7.3%, respectively), while those %< LLN were 0.2% to 1.4% and 0.1% to 0.9%, respectively.
Full table
Comparisons with previous reference values derived from Chinese

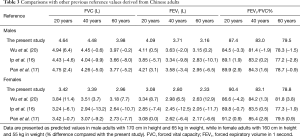

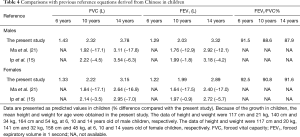

For FEV1 and FVC of adults aged 20, 40, and 60 years in Table 3, the percentage differences between this study and previous studies were −2.0% to 12.9% in Wu et al. (20), −13.2% to −4.6% in Ip et al. (16), −9.2% to 3.1% in Pan et al. (17), respectively. For FEV1 and FVC of children aged 6, 10, and 14 years in Table 4, the percentage differences were −17.8% to −12.1% in Ma et al. (21), −7.0 to −0.9% in Ip et al. (15), respectively.
Full table
Full table
Discussion
Predicted values and LLNs for spirometry in Chinese aged 4 to 80 years were established with 7,115 non-smoking health subjects in 24 collaborative centers. The present study demonstrated that Caucasian reference values adjusted with fixed ethnic conversion factors were inappropriate for Chinese in the whole age range. Compared with this study, the previous Chinese studies were found to significantly overestimate or underestimate lung function measurements for Chinese.
This study showed that SEA-GLI2012 and NEA-GLI2012 significantly underestimated or overestimated the FEV1, FVC, and FEV1/FVC for Chinese, not matter in percentage differences, z-scores or %
This study compared with the previous studies for Chinese. Ip et al. (16) and Pan et al. (17) significantly underestimated the FVC and FEV1 of adults (up to −13.2%), while Wu et al. (20) significantly overestimated the FVC and FEV1 of female adults (up to 11.4%). In the other hand, Ma et al. (21) and Ip et al. (15) both underestimated the FVC and FEV1 of children (up to −17.8%). Moreover, the reference values of FEV1/FVC for children were rarely reported in the previous studies, and this issue should be paid attention in clinical practice. Anyway, the momentous changes of economy, life styles, nutritional status, and living environment have been observed in recent decades, which might impact significantly on pulmonary function (16,32).
What we taken critical concern is the fact that there are no local contemporary reference values in most regions of Chinese, except for Caucasian reference values adjusted with ethnic conversion factors, while it could be impractical to establish reference for each region. With huge medical service demands (6), it is essential and urgent to establish a unique representing reference for Chinese, which is not only conducive for the government and Centers for Disease Control to make the policies, and take actions for the management and prevention of respiratory diseases, but also good for assessment of individuals. In addition, increasing domestic and international multi-center clinical trials have been conducted, in which unified reference equations for spirometry are compulsory.
Without LLNs of FEV1/FVC, a fixed ratio 0.70 of FEV1/FVC was widely used in clinical practice and epidemiological research in China (7,23), while this fixed FEV1/FVC particularly went against the studies of early COPD due to possible underdiagnosis in younger subjects and over diagnosis in elderly. Although our study protocol for intervention in Chinese patients with early COPD has been published (24), the accuracy of diagnosis for COPD with the fixed 0.7 of FEV1/FVC is still questioned. Instead, LLNs were suggested to provide more accurate diagnosis in Caucasians (33). The controversy that whether the LLN or the fixed 0.7 is better for clinical practice still needs further longitudinal study to clarify. Undoubtedly, the present study provides the LLNs of spirometric indices for Chinese, an important reference for clinical practice.
There are some limitations in the present study. We did not record the influences of pulmonary function, such as economic conditions, residential environment, nutrition, etc. Because of the frequent immigrant in the life, it is hard to clearly definite which one from the rural/urban area, not in our study either. The present study enrolled the Han people only, but Han accounts for 91.51% of the total population in China (5). Han can be considered as a representative of Chinese, owing to no available prediction equations of lung function for minority groups, as well as, the living environment and ancestor of non-Han that are close to those of Han. Considering of the difficulty for recruiting the healthy non-smokers aged >80 years, the subjects within such age range were excluded. However, the reference values for Chinese aged 4 to 80 years met the most demands of clinical practice. Because the healthy participants were enrolled from healthy screening department, we just recorded those who met the inclusion/exclusion criteria and completed the spirometry. Therefore, these issues will be concerned in future studies.
Conclusions
In conclusion, the present study established new reference values including LLNs for better interpretation of spirometry in Chinese. Spirometric reference values between different races (such as Caucasian and Chinese) might not be adjusted with fixed ethnic conversion factors for all ages.
Acknowledgements
The following people and centers contributed data to this manuscript. Chen Wang, Beijing Chaoyang Hospital, Capital Medical University, Beijing 100020, China; Zhiyang Luo, Foshan First People’s Hospital, Foshan 528000, China; Zhenshan Wang, The Second Hospital of Dalian Medical University, Dalian 116027, China; Ping Chen, The General Hospital Of Shenyang Military Region, Shenyang 110016, China; Wanzhen Yao, Peking University Third Hospital, Beijing 100191, China; Fuqiang Wen, West China Hospital of Sichuan University, Chengdu 610041, China; Zhengxian Chen, Guangdong General Hospital, Guangzhou 510080, China; Yuanrong Dai, The Second Affiliated Hospital & Yuying Children’s Hospital of Wenzhou Medical University, Wenzhou 325027, China; Changzheng Wang, Xinqiao Hospital, Third Military Medical University, Chongqing 400037, China; Jinming Liu, Shanghai Pulmonary Hospital, Shanghai 200433, China; Guihua Zhao, Henan Provincial People’s Hospital, Zhengzhou 450003, China; Huanying Wang, Rui Jin Hospital of Shanghai Jiao Tong University School of Medicine, Shanghai 200025, China; Jianzhang Yuan, Guangzhou Red Cross Hospital, Guangzhou 510220, China; Xiaoju Liu, The First Hospital of Lanzhou University, Lanzhou 730000, China.
Funding: This work was supported by Chronic respiratory diseases funding, Chinese Medical Association research projects, National Key Technology R&D Program (2016YFC1304603, 2015BAI12B10).
Footnote
Conflicts of Interest: The authors have no conflicts of interest to declare.
